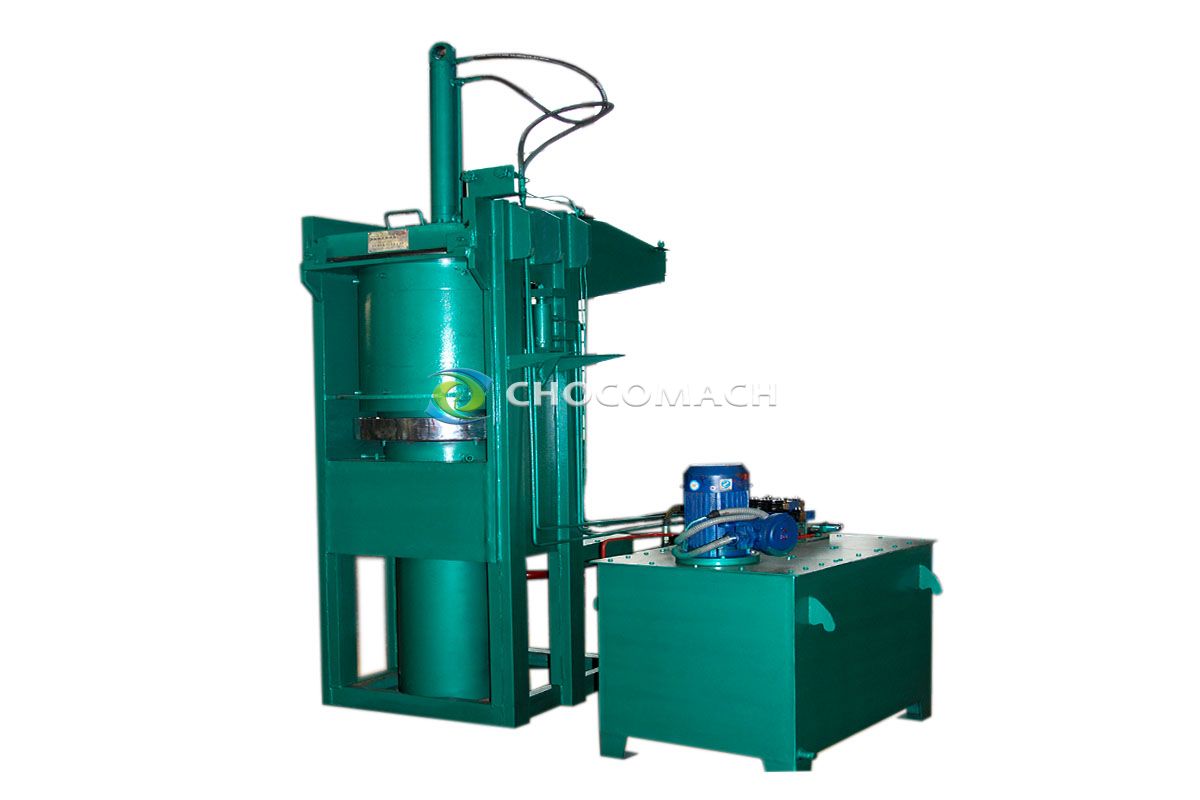

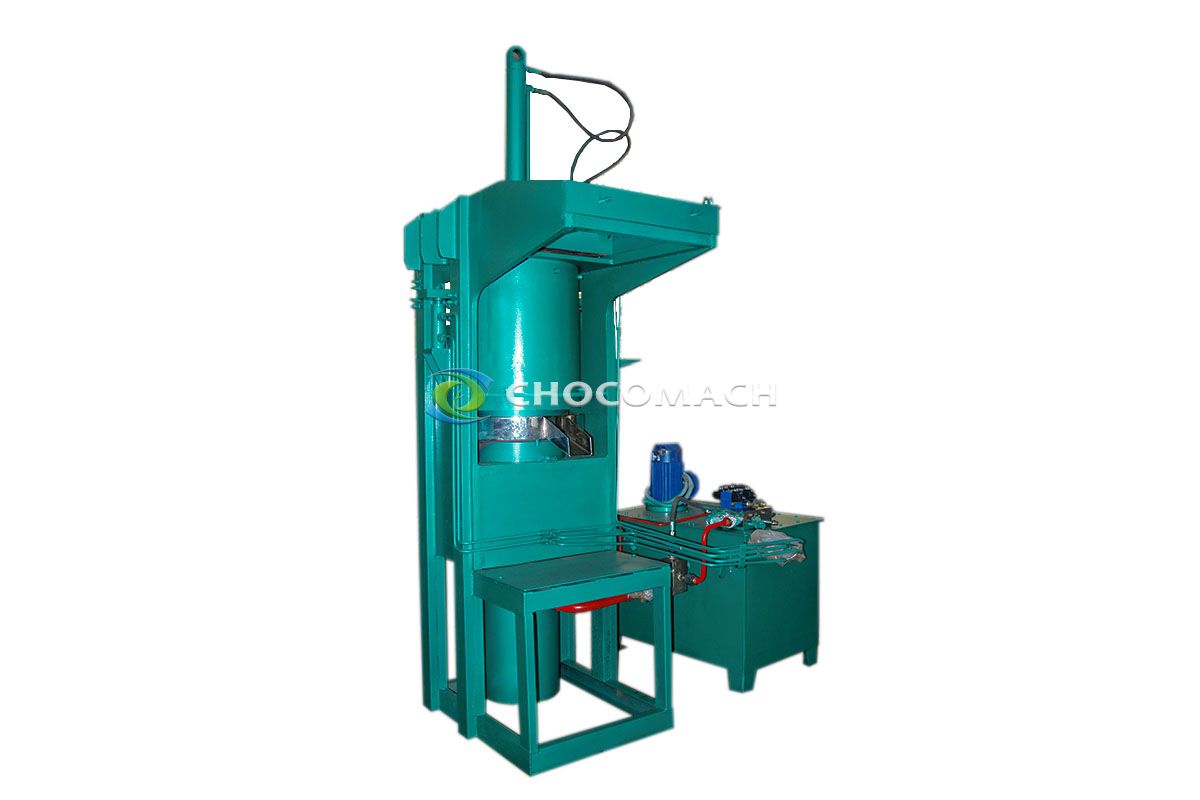

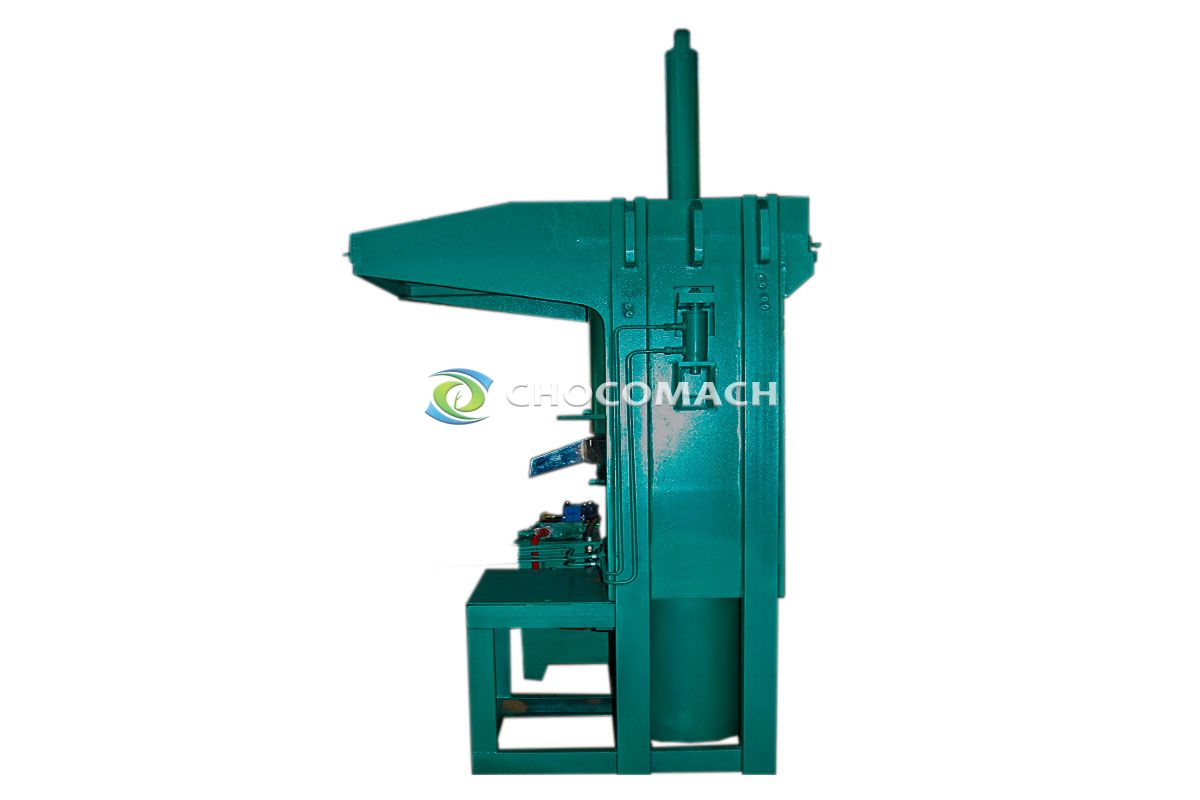

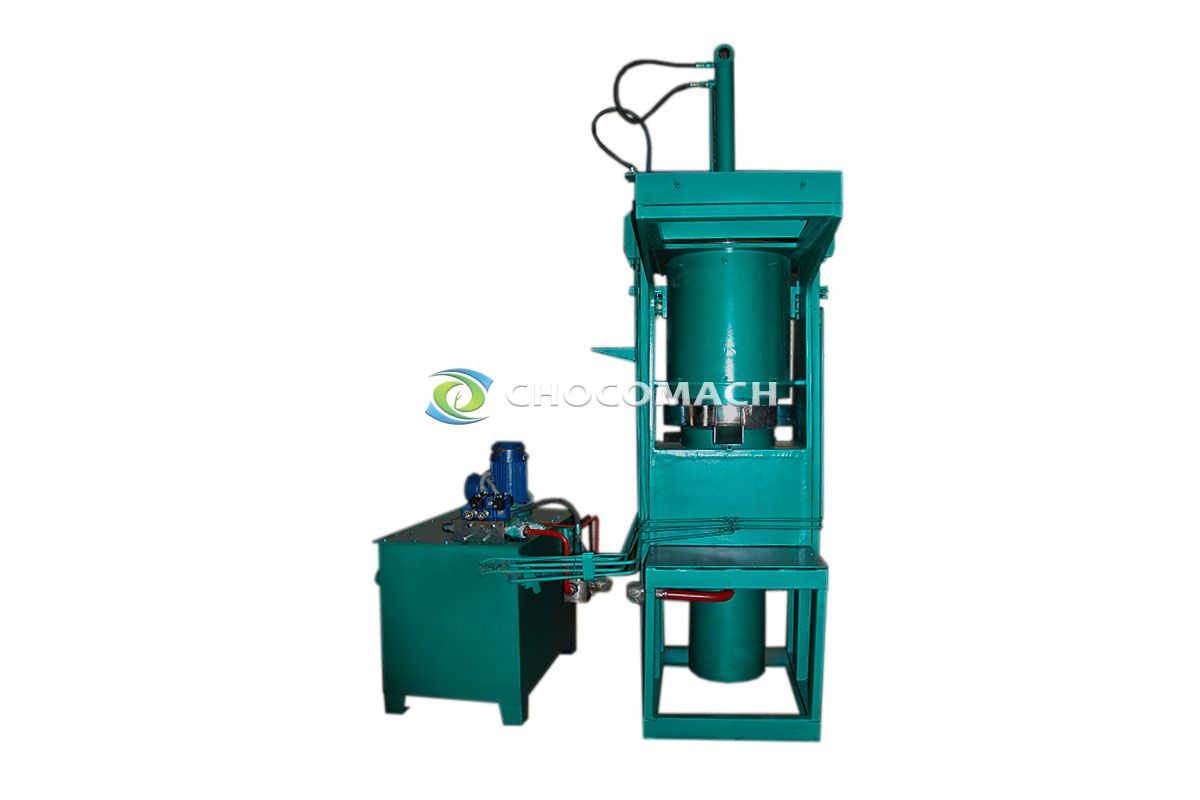

Hydraulic Peanut Oil Press

  • Hydraulic pressure(bar): up to 500
  • Pressure on mass(bar): up to 259
  • Motor power(kw): 5.5
  • Hourly capacity(kg/h): up to 145

Press ranges:

·The cold pressing woody oil plant: walnuts、alomnds、almonds、pine nuts、macadimia nuts、peony seeds,etc.

·The hot pressing oil-bearing crops:Peanut, Rapeseed, Soybean, Sunflower, Camellia Seed, Flaxseed, etc.

·Traditional Chinese medicine class :Hemp seeds, mustard seeds, safflower seeds, etc.

Product feature:

·Good grease,pure physical pressing, no temperature is generated during cold pressing, the organic components that do not destroy the oil, low impurity content, high pie value、wide range of applications.

·High oil yield:Using the company's self-developed hydraulic system (system pressure can reach 50Mpa), with the company's self-developed variable-gap barrel technology, it saves filter cloth and has a higher oil yield.

·Portable and efficient:Mechatronics design, high degree of automation, can be completed within 60 minutes from charging to cake, beautiful appearance and simple operation.

·Safe and reliable:run smoothly、low failure rate、long working life.

Technical Data
Piston diameter(mm)300360420
Material box Size diamter*height(mm)420*800500*800600*800
Hydraulic pressure(bar)500500500
Pressure on the material mass(bar)255259245
Size(length x width x height mm)1020*1200*29801090*1300*29802920*1720*2980
Total weight(kg)190022003600
Motor power(kw)
Hourly capacity(kg/h)70100145
