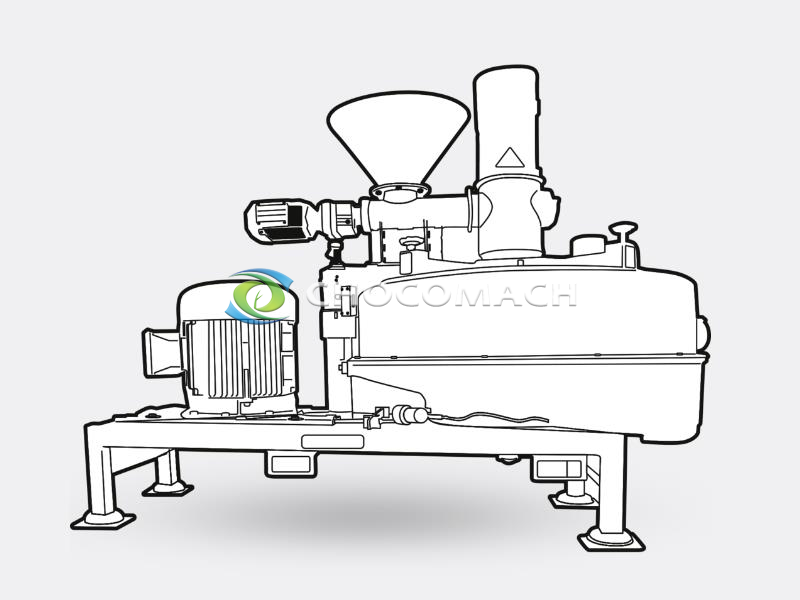

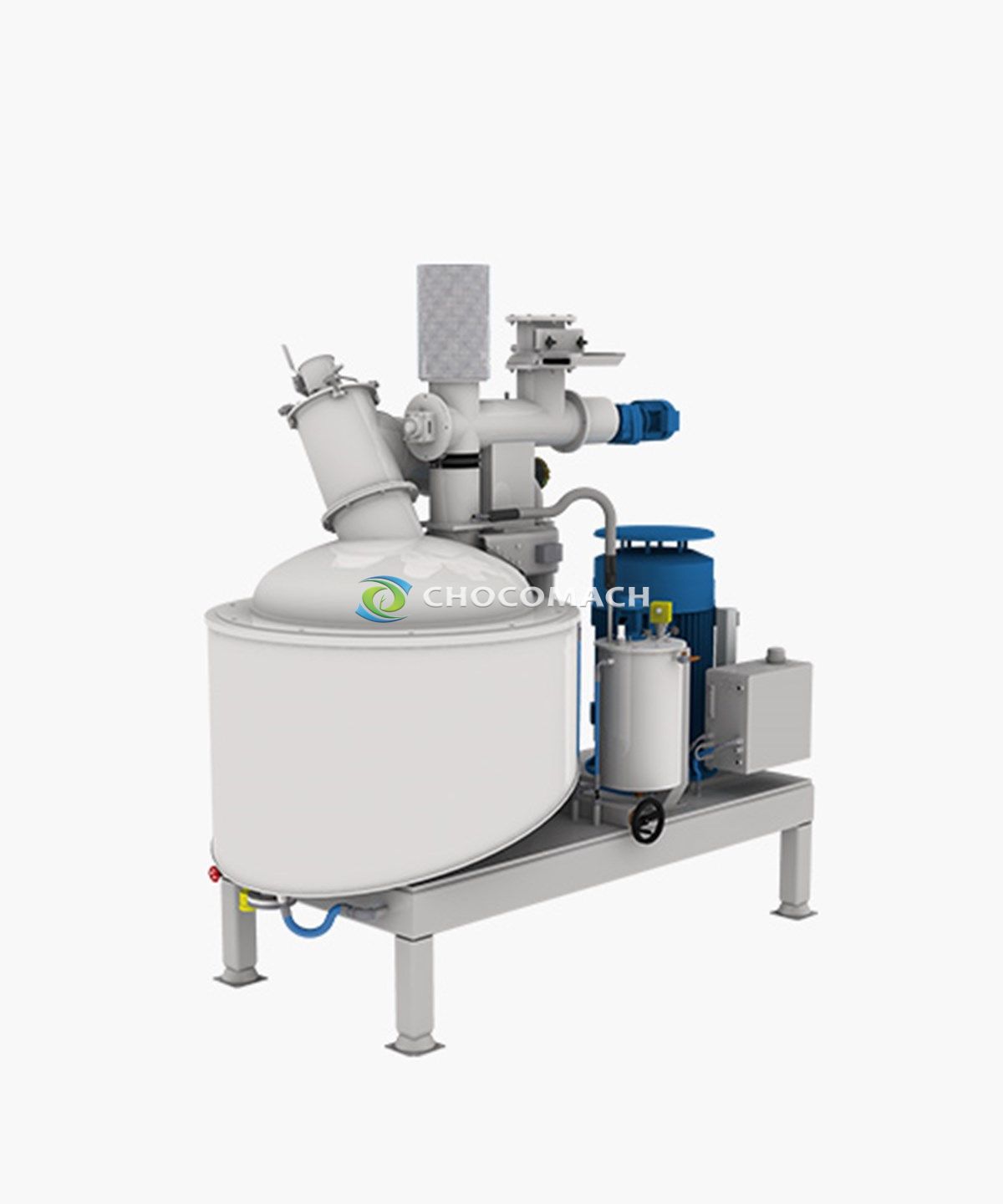

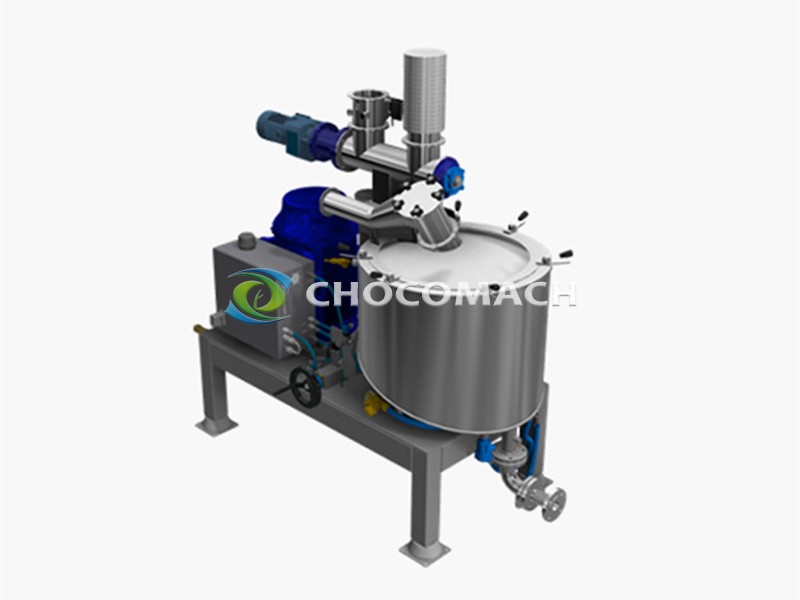

Cocoa Pre-refining Grinding Beater Blade Mill

  • N600 Capacities [kg / hr]: 300 – 500
  • N2000 Capacities [kg / hr]: 500 – 1.700
  • N3500 Capacities [kg / hr]: 1.700 – 3.800

Beater Blade Mill for first stage grinding of roasted cocoa nibs, nuts and seeds
Wiener original design, with leak-tight sieve installation and easily/quickly changeable wear parts
Low maintenance by design and construction
Well-designed temperature control prevents discoloring and undesirable flavors
Small footprint
Well-proven technology

The Wiener type Nibrotom is designed especially for the pre-grinding of cocoa nibs, nuts, almonds and other seeds with a high fat/oil content. Cocoa nibs are fed from the top into the grinding chamber by a dosing  screw, where knives immediately start the grinding process. These knives are made from specially hardened steel that significantly reduces wear. The pre-ground material (liquor, paste) leaves the machine through a slotted sieve and by selecting the appropriate sieve size, fineness can be adjusted as required. Optimum quality is ensured and maximum capacity is achieved.
This Beater Blade Mill combines optimal results and an excellent particle size distribution with a relatively low wet screen residue. This in turn ensures the best possible performance of all downstream refining equipment.

Technical Data
TypesCapacities [kg / hr]
Beater Blade Mill type N600300 – 500
Beater Blade Mill type N2000500 – 1.700
Beater Blade Mill type N35001.700 – 3.800
